材质：紫铜
含量：铜99.9%以上
表面：镀锡
用途：端子就是用于实现电线连接的一种配件产品。

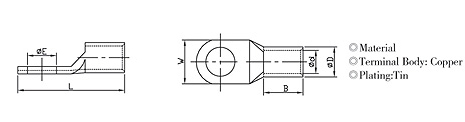

| 编号 | 型号 | 尺寸 | |||||
| ?E | ΦD | Φd | W | B | L | ||
| AL0002-4001 | C-SC1.5-4 | 4.2 | 3.3 | 1.8 | 8 | 5 | 16 |
| AL0002-4002 | C-SC1.5-5 | 5.2 | 3.3 | 1.8 | 10 | 5 | 17 |
| AL0002-4003 | C-SC1.5-6 | 6.5 | 3.3 | 1.8 | 10 | 5 | 18 |
| AL0002-4004 | C-SC2.5-4 | 4.2 | 3.6 | 2.4 | 8 | 7 | 18 |
| AL0002-4005 | C-SC2.5-5 | 5.2 | 3.6 | 2.4 | 10 | 7 | 20 |
| AL0002-4006 | C-SC2.5-6 | 6.5 | 3.6 | 2.4 | 10 | 7 | 20 |
| AL0002-4007 | C-SC2.5-8 | 8.4 | 3.6 | 2.4 | 12.5 | 7 | 23 |
| AL0002-4008 | C-SC4-4 | 4.2 | 4.4 | 3.1 | 10 | 7 | 20 |
| AL0002-4009 | C-SC4-5 | 5.2 | 4.4 | 3.1 | 10 | 7 | 20 |
| AL0002-4010 | C-SC4-6 | 6.5 | 4.4 | 3.1 | 10 | 7 | 20 |
| AL0002-4011 | C-SC4-8 | 8.4 | 4.4 | 3.1 | 12.5 | 7 | 23 |
| AL0002-4012 | C-SC6-4 | 4.2 | 5.1 | 3.8 | 10 | 9 | 24 |
| AL0002-4013 | C-SC6-5 | 5.2 | 5.1 | 3.8 | 10 | 9 | 24 |
| AL0002-4014 | C-SC6-6 | 6.5 | 5.1 | 3.8 | 12 | 9 | 24 |
| AL0002-4015 | C-SC6-8 | 8.4 | 5.1 | 3.8 | 12.5 | 9 | 26 |
| AL0002-4016 | C-SC6-10 | 10.5 | 5.7 | 4 | 15 | 9 | 28 |
| AL0002-4017 | C-SC10-5 | 5.2 | 5.8 | 4.5 | 12 | 9 | 25 |
| AL0002-4018 | C-SC10-6 | 6.5 | 5.8 | 4.5 | 12 | 9 | 25 |
| AL0002-4019 | C-SC10-8 | 8.4 | 5.8 | 4.5 | 12.5 | 9 | 27 |
| AL0002-4020 | C-SC10-10 | 10.5 | 5.8 | 4.5 | 15 | 9 | 29 |
| AL0002-4021 | C-SC10-12 | 13 | 5.8 | 4.5 | 17 | 9 | 31 |
| AL0002-4022 | C-SC16-5 | 5.2 | 6.6 | 5.4 | 12 | 12 | 30 |
| AL0002-4023 | C-SC16-6 | 6.5 | 6.6 | 5.4 | 12 | 12 | 30 |
| AL0002-4024 | C-SC16-8 | 8.4 | 6.6 | 5.4 | 12.5 | 12 | 30 |
| AL0002-4025 | C-SC16-10 | 10.5 | 6.6 | 5.4 | 16 | 12 | 33 |
| AL0002-4026 | C-SC16-12 | 13 | 6.6 | 5.4 | 17 | 12 | 35 |
| AL0002-4027 | C-SC25-5 | 5.2 | 8.3 | 6.8 | 13 | 12 | 33 |
| AL0002-4028 | C-SC25-6 | 6.5 | 8.3 | 6.8 | 13 | 12 | 33 |
| AL0002-4029 | C-SC25-8 | 8.4 | 8.3 | 6.8 | 15 | 12 | 33 |
| AL0002-4030 | C-SC25-10 | 10.5 | 8.3 | 6.8 | 18 | 12 | 34 |
| AL0002-4031 | C-SC25-12 | 13 | 8.3 | 6.8 | 18 | 12 | 35 |
| AL0002-4032 | C-SC25-14 | 15 | 8.3 | 6.8 | 20 | 12 | 38 |
| AL0002-4033 | C-SC35-5 | 5.2 | 10 | 8.2 | 16 | 14 | 38 |
| AL0002-4034 | C-SC35-6 | 6.5 | 10 | 8.2 | 16 | 14 | 38 |
| AL0002-4035 | C-SC35-8 | 8.4 | 10 | 8.2 | 16 | 14 | 38 |
| AL0002-4036 | C-SC35-10 | 10.5 | 10 | 8.2 | 18 | 14 | 39 |
| AL0002-4037 | C-SC35-12 | 13 | 10 | 8.2 | 19 | 14 | 40.5 |
| AL0002-4038 | C-SC35-14 | 15 | 10 | 8.2 | 20 | 14 | 42 |
| AL0002-4039 | C-SC50-6 | 6.5 | 11.6 | 9.5 | 17 | 16 | 45 |
| AL0002-4040 | C-SC50-8 | 8.4 | 11.6 | 9.5 | 17 | 16 | 45 |
| AL0002-4041 | C-SC50-10 | 10.5 | 11.6 | 9.5 | 17 | 16 | 45 |
| AL0002-4042 | C-SC50-12 | 13 | 11.6 | 9.5 | 20 | 16 | 45 |
| AL0002-4043 | C-SC50-14 | 15 | 11.6 | 9.5 | 22 | 16 | 46 |
| AL0002-4044 | C-SC50-16 | 17 | 11.6 | 9.5 | 24 | 16 | 47 |
| AL0002-4045 | C-SC70-8 | 8.4 | 13.8 | 11.2 | 20.4 | 20 | 52 |
| AL0002-4046 | C-SC70-10 | 10.5 | 13.8 | 11.2 | 20.4 | 20 | 52 |
| AL0002-4047 | C-SC70-12 | 13 | 13.8 | 11.2 | 20.4 | 20 | 52 |
| AL0002-4048 | C-SC70-14 | 15 | 13.8 | 11.2 | 20.4 | 20 | 52 |
| AL0002-4049 | C-SC70-16 | 17 | 13.8 | 11.2 | 25 | 20 | 53 |
| AL0002-4050 | C-SC95-8 | 8.4 | 16.4 | 13.5 | 24 | 23 | 58 |
| AL0002-4051 | C-SC95-10 | 10.5 | 16.4 | 13.5 | 24 | 23 | 58 |
| AL0002-4052 | C-SC95-12 | 13 | 16.4 | 13.5 | 24 | 23 | 58 |
| AL0002-4053 | C-SC95-14 | 15 | 16.4 | 13.5 | 24 | 23 | 58 |
| AL0002-4054 | C-SC95-16 | 17 | 16.4 | 13.5 | 24 | 23 | 58 |
| AL0002-4055 | C-SC120-8 | 8.4 | 18.2 | 15 | 27 | 22 | 63 |
| AL0002-4056 | C-SC120-10 | 10.5 | 18.2 | 15 | 27 | 22 | 63 |
| AL0002-4057 | C-SC120-12 | 13 | 18.2 | 15 | 27 | 22 | 63 |
| AL0002-4058 | C-SC120-14 | 15 | 18.2 | 15 | 27 | 22 | 63 |
| AL0002-4059 | C-SC120-16 | 17 | 18.2 | 15 | 27 | 22 | 63 |
| AL0002-4060 | C-SC120-20 | 21 | 18.2 | 15 | 27 | 22 | 63 |
| AL0002-4061 | C-SC150-8 | 8.4 | 19.9 | 16.5 | 29.5 | 26 | 70 |
| AL0002-4062 | C-SC150-10 | 10.5 | 19.9 | 16.5 | 29.5 | 26 | 70 |
| AL0002-4063 | C-SC150-12 | 13 | 19.9 | 16.5 | 29.5 | 26 | 70 |
| AL0002-4064 | C-SC150-14 | 15 | 19.9 | 16.5 | 29.5 | 26 | 70 |
| AL0002-4065 | C-SC150-16 | 17 | 19.9 | 16.5 | 29.5 | 26 | 70 |
| AL0002-4066 | C-SC150-20 | 21 | 19.9 | 16.5 | 29.5 | 26 | 70 |
| AL0002-4067 | C-SC185-10 | 10.5 | 22.1 | 18.5 | 32.5 | 32 | 75 |
| AL0002-4068 | C-SC185-12 | 13 | 22.1 | 18.5 | 32.5 | 32 | 75 |
| AL0002-4069 | C-SC185-14 | 15 | 22.1 | 18.5 | 32.5 | 32 | 75 |
| AL0002-4070 | C-SC185-16 | 17 | 22.1 | 18.5 | 32.5 | 32 | 75 |
| AL0002-4071 | C-SC185-20 | 21 | 22.1 | 18.5 | 32.5 | 32 | 75 |
| AL0002-4072 | C-SC240-10 | 10.5 | 25 | 21 | 37 | 38 | 90 |
| AL0002-4073 | C-SC240-12 | 13 | 25 | 21 | 37 | 38 | 90 |
| AL0002-4074 | C-SC240-14 | 15 | 25 | 21 | 37 | 38 | 90 |
| AL0002-4075 | C-SC240-16 | 17 | 25 | 21 | 37 | 38 | 90 |
| AL0002-4076 | C-SC240-20 | 21 | 25 | 21 | 37 | 38 | 90 |
| AL0002-4077 | C-SC300-10 | 10.5 | 28.2 | 23.5 | 41.5 | 42 | 98 |
| AL0002-4078 | C-SC300-12 | 13 | 28.2 | 23.5 | 41.5 | 42 | 98 |
| AL0002-4079 | C-SC300-14 | 15 | 28.2 | 23.5 | 41.5 | 42 | 98 |
| AL0002-4080 | C-SC300-16 | 17 | 28.2 | 23.5 | 41.5 | 42 | 98 |
| AL0002-4081 | C-SC300-20 | 21 | 28.2 | 23.5 | 41.5 | 42 | 98 |
| AL0002-4082 | C-SC400-10 | 10.5 | 34.3 | 28.5 | 50.5 | 44 | 110 |
| AL0002-4083 | C-SC400-12 | 13 | 34.3 | 28.5 | 50.5 | 44 | 110 |
| AL0002-4084 | C-SC400-14 | 15 | 34.3 | 28.5 | 50.5 | 44 | 110 |
| AL0002-4085 | C-SC400-16 | 17 | 34.3 | 28.5 | 50.5 | 44 | 110 |
| AL0002-4086 | C-SC400-20 | 21 | 34.3 | 28.5 | 50.5 | 44 | 110 |
| AL0002-4087 | C-SC500-10 | 10.5 | 36.5 | 30 | 53.5 | 48 | 120 |
| AL0002-4088 | C-SC500-12 | 13 | 36.5 | 30 | 53.5 | 48 | 120 |
| AL0002-4089 | C-SC500-14 | 15 | 36.5 | 30 | 53.5 | 48 | 120 |
| AL0002-4090 | C-SC500-16 | 17 | 36.5 | 30 | 53.5 | 48 | 120 |
| AL0002-4091 | C-SC500-20 | 21 | 36.5 | 30 | 53.5 | 48 | 120 |
| AL0002-4092 | C-SC630-10 | 10.5 | 42.2 | 35 | 62.5 | 56 | 140 |
| AL0002-4093 | C-SC630-12 | 13 | 42.2 | 35 | 62.5 | 56 | 140 |
| AL0002-4094 | C-SC630-14 | 15 | 42.2 | 35 | 62.5 | 56 | 140 |
| AL0002-4095 | C-SC630-16 | 17 | 42.2 | 35 | 62.5 | 56 | 140 |
| AL0002-4096 | C-SC630-20 | 21 | 42.2 | 35 | 62.5 | 56 | 140 |
