材质：紫铜
含量：铜99.9%以上
表面：镀锡
用途：端子就是用于实现电线连接的一种配件产品。

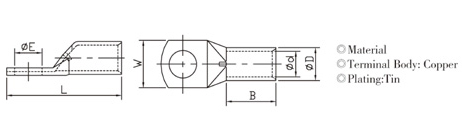

| 编号 | 型号 | 尺寸 | |||||
| φE | ΦD | Φd | W | B | L | ||
| AL0003-0001 | GC1.5-3 | 3.2 | 3.7 | 1.8 | 8 | 6 | 16 |
| AL0003-0002 | GC1.5-4 | 4.3 | 3.7 | 1.8 | 8 | 6 | 17 |
| AL0003-0003 | GC1.5-5 | 5.3 | 3.7 | 1.8 | 10 | 7 | 19 |
| AL0003-0004 | GC1.5-6 | 6.5 | 3.7 | 1.8 | 10 | 7 | 20 |
| AL0003-0005 | GC2.5-3 | 3.2 | 3.9 | 2.3 | 8 | 7 | 17 |
| AL0003-0006 | GC2.5-4 | 4.3 | 3.9 | 2.3 | 8 | 7 | 18 |
| AL0003-0007 | GC2.5-5 | 5.3 | 3.9 | 2.3 | 10 | 7 | 20 |
| AL0003-0008 | GC2.5-6 | 6.5 | 3.9 | 2.3 | 10 | 7 | 20 |
| AL0003-0009 | GC2.5-8 | 8.3 | 4.3 | 2.3 | 12.5 | 7 | 22.5 |
| AL0003-0010 | GC4-4 | 4.3 | 4.7 | 3 | 10 | 8 | 21 |
| AL0003-0011 | GC4-5 | 5.3 | 4.7 | 3 | 10 | 8 | 22 |
| AL0003-0012 | GC4-6 | 6.5 | 4.7 | 3 | 10 | 8 | 23 |
| AL0003-0013 | GC4-8 | 8.3 | 4.7 | 3 | 12.5 | 8 | 24 |
| AL0003-0014 | GC6-4 | 4.3 | 5.9 | 4 | 10 | 9.5 | 24.6 |
| AL0003-0015 | GC6-5 | 5.3 | 5.9 | 4 | 10 | 9.5 | 24.6 |
| AL0003-0016 | GC6-6 | 6.5 | 5.9 | 4 | 11 | 9.5 | 24.6 |
| AL0003-0017 | GC6-8 | 8.3 | 5.9 | 4 | 12.5 | 9.5 | 27.3 |
| AL0003-0018 | GC6-10 | 10.3 | 6.2 | 4 | 15 | 9.5 | 28.3 |
| AL0003-0019 | A-GC10-4 | 4.3 | 6.6 | 4.5 | 11 | 13 | 30 |
| AL0003-0020 | A-GC10-5 | 5.3 | 6.6 | 4.5 | 11 | 13 | 30 |
| AL0003-0021 | A-GC10-6 | 6.5 | 6.6 | 4.5 | 11 | 13 | 30 |
| AL0003-0022 | A-GC10-8 | 8.3 | 6.6 | 4.5 | 12.5 | 13 | 30 |
| AL0003-0023 | A-GC10-10 | 10.3 | 6.9 | 4.5 | 16 | 13 | 34.1 |
| AL0003-0024 | A-GC10-12 | 12.7 | 6.9 | 4.5 | 18 | 12 | 34.1 |
| AL0003-0025 | A-GC16-5 | 5.3 | 7.5 | 5.5 | 11 | 14 | 30.7 |
| AL0003-0026 | A-GC16-6 | 6.5 | 7.5 | 5.5 | 11 | 14 | 30.7 |
| AL0003-0027 | A-GC16-8 | 8.3 | 7.5 | 5.5 | 12.5 | 13 | 30.7 |
| AL0003-0028 | A-GC16-10 | 10.3 | 7.5 | 5.5 | 16 | 14 | 35.9 |
| AL0003-0029 | A-GC16-12 | 12.7 | 8.1 | 5.5 | 18 | 13 | 35.9 |
| AL0003-0030 | A-GC25-5 | 5.3 | 9.1 | 6.7 | 13 | 13 | 32.2 |
| AL0003-0031 | A-GC25-6 | 6.5 | 9.1 | 6.7 | 13 | 13 | 32.2 |
| AL0003-0032 | A-GC25-8 | 8.3 | 9.1 | 6.7 | 13 | 13 | 32.2 |
| AL0003-0033 | A-GC25-10 | 10.3 | 9.1 | 6.7 | 16 | 14 | 36.9 |
| AL0003-0034 | A-GC25-12 | 12.7 | 9.1 | 6.7 | 18 | 13 | 36.9 |
| AL0003-0035 | A-GC25-14 | 14.8 | 9.1 | 6.7 | 20 | 13 | 38.9 |
| AL0003-0036 | A-GC35-5 | 5.3 | 11 | 8.6 | 16 | 16 | 37.6 |
| AL0003-0037 | A-GC35-6 | 6.5 | 11 | 8.6 | 16 | 16 | 37.6 |
| AL0003-0038 | A-GC35-8 | 8.3 | 11 | 8.6 | 16 | 16 | 37.6 |
| AL0003-0039 | A-GC35-10 | 10.3 | 11 | 8.6 | 16.7 | 16 | 41.5 |
| AL0003-0040 | A-GC35-12 | 12.7 | 11 | 8.6 | 18 | 16 | 41.5 |
| AL0003-0041 | A-GC35-14 | 14.8 | 11 | 8.6 | 20 | 16 | 43.5 |
| AL0003-0042 | A-GC35-16 | 16.5 | 11 | 8.6 | 23 | 16 | 45.5 |
| AL0003-0043 | A-GC50-5 | 5.3 | 12.4 | 9.5 | 18 | 17 | 41 |
| AL0003-0044 | A-GC50-6 | 6.5 | 12.4 | 9.5 | 18 | 17 | 41 |
| AL0003-0045 | A-GC50-8 | 8.3 | 12.4 | 9.5 | 18 | 17 | 41 |
| AL0003-0046 | |||||||
| AL0003-0047 | A-GC50-10 | 10.3 | 12.4 | 9.5 | 18 | 17 | 44 |
| AL0003-0048 | A-GC50-12 | 12.7 | 12.4 | 9.5 | 19 | 17 | 44 |
| AL0003-0049 | A-GC50-14 | 14.8 | 12.4 | 9.5 | 21 | 19 | 52.8 |
| AL0003-0050 | A-GC50-16 | 16.5 | 12.4 | 9.5 | 23 | 19 | 52.8 |
| AL0003-0051 | A-GC70-5 | 5.3 | 15 | 12 | 22 | 21.5 | 52.4 |
| AL0003-0052 | A-GC70-6 | 6.3 | 15 | 12 | 22 | 21.5 | 52.4 |
| AL0003-0053 | A-GC70-8 | 8.3 | 15 | 12 | 22 | 21.5 | 52.4 |
| AL0003-0054 | A-GC70-10 | 10.3 | 15 | 12 | 22 | 21.5 | 52.4 |
| AL0003-0055 | A-GC70-12 | 12.7 | 15 | 12 | 22 | 21.5 | 52.4 |
| AL0003-0056 | A-GC70-14 | 14.8 | 15 | 12 | 22 | 21.5 | 55 |
| AL0003-0057 | A-GC70-16 | 16.5 | 15 | 12 | 24 | 20 | 55 |
| AL0003-0058 | A-GC95-8 | 8.3 | 17 | 13.4 | 25 | 22.5 | 54.7 |
| AL0003-0059 | A-GC95-10 | 10.3 | 17 | 13.4 | 25 | 22.5 | 54.7 |
| AL0003-0060 | A-GC95-12 | 12.7 | 17 | 13.4 | 25 | 22.5 | 54.7 |
| AL0003-0061 | A-GC95-14 | 14.8 | 17 | 13.4 | 25 | 22.5 | 58.3 |
| AL0003-0062 | A-GC95-16 | 16.8 | 17 | 13.4 | 25 | 22.5 | 58.3 |
| AL0003-0063 | A-GC120-8 | 8.3 | 19 | 15 | 27 | 23 | 60 |
| AL0003-0064 | A-GC120-10 | 10.3 | 19 | 15 | 27 | 23 | 60 |
| AL0003-0065 | A-GC120-12 | 12.7 | 19 | 15 | 27 | 23 | 60 |
| AL0003-0066 | A-GC120-14 | 14.8 | 19 | 15 | 27 | 23 | 64 |
| AL0003-0067 | A-GC120-16 | 16.5 | 19 | 15 | 27 | 23 | 64 |
| AL0003-0068 | A-GC150-10 | 10.3 | 21.2 | 16.5 | 30 | 27 | 67 |
| AL0003-0069 | A-GC150-12 | 12.7 | 21.2 | 16.5 | 30 | 27 | 67 |
| AL0003-0070 | A-GC150-14 | 14.8 | 21.2 | 16.5 | 30 | 27 | 67 |
| AL0003-0071 | A-GC150-16 | 16.5 | 21.2 | 16.5 | 30 | 27 | 71.4 |
| AL0003-0072 | A-GC150-20 | 20.9 | 21.2 | 16.5 | 30 | 27 | 71.4 |
| AL0003-0073 | A-GC185-10 | 10.3 | 23 | 19 | 34 | 30 | 73 |
| AL0003-0074 | A-GC185-12 | 12.7 | 23 | 19 | 34 | 30 | 73 |
| AL0003-0075 | A-GC185-14 | 14.8 | 23 | 19 | 34 | 30 | 73 |
| AL0003-0076 | A-GC185-16 | 16.5 | 23 | 19 | 34 | 30 | 76.2 |
| AL0003-0077 | A-GC185-20 | 20.9 | 23 | 19 | 34 | 30 | 76.2 |
| AL0003-0078 | A-GC240-10 | 10.3 | 26.5 | 21 | 38 | 38 | 91.4 |
| AL0003-0079 | A-GC240-12 | 12.7 | 26.5 | 21 | 38 | 38 | 91.4 |
| AL0003-0080 | A-GC240-14 | 14.8 | 26.5 | 21 | 38 | 38 | 91.4 |
| AL0003-0081 | A-GC240-16 | 16.5 | 26.5 | 21 | 38 | 38 | 91.4 |
| AL0003-0082 | A-GC240-20 | 20.9 | 26.5 | 21 | 38 | 38 | 91.4 |
| AL0003-0083 | A-GC300-12 | 12.7 | 30 | 24.5 | 43 | 42 | 98 |
| AL0003-0084 | A-GC300-14 | 14.8 | 30 | 24.5 | 43 | 42 | 98 |
| AL0003-0085 | A-GC300-16 | 16.5 | 30 | 24.5 | 43 | 42 | 98 |
| AL0003-0086 | A-GC300-20 | 20.9 | 30 | 24.5 | 43 | 42 | 98 |
| AL0003-0087 | A-GC400-12 | 12.7 | 35 | 27 | 49 | 44 | 104 |
| AL0003-0088 | A-GC400-14 | 14.8 | 35 | 27 | 49 | 44 | 104 |
| AL0003-0089 | A-GC400-16 | 16.5 | 35 | 27 | 49 | 44 | 104 |
| AL0003-0090 | A-GC400-20 | 20.9 | 35 | 27 | 49 | 44 | 104 |
