产品材质:采用低卤素硬质PVC料制成,环保无污染,不含铅等有毒物。
产品认证:美国UL:E306674 欧洲CE 欧洲环保RoHS,REACH,铁道阻燃低烟。
防火等级:UL94V-0,低烟微卤,遇火不燃烧,防火性及绝缘性特佳。
产品构造:由槽底及槽盖组成,底槽两侧设有出线孔。
颜 色:灰色.白色.蓝色.黑色
工作温度:静态-40°C持续高温至70°C
使用方法:先将底槽固定,将所要配的线装入槽内,盖上槽盖即可。
产品特性:1.反扣式槽盖与槽体设计组合後绝不脱落,且接合面平滑,不割伤手 及擦损附近配线。
2.配线槽70°C内不易断裂,变形,变色,装配省时便利。
3.出线孔低、组合容易、拆卸简单、易于配线。

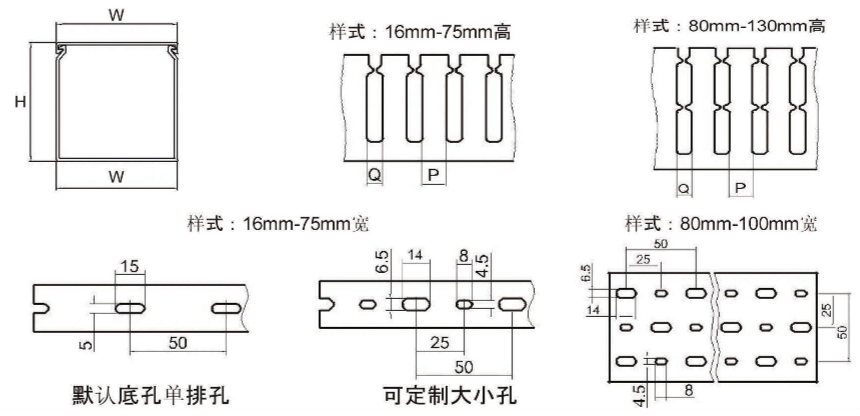

![J%4DQ{(TY)B)TOA5V91{1]Q.png](/data/images/product/tefjqfnh0qd693.png "J%4DQ{(TY)B)TOA5V91{1]Q.png")
| 型号Item No. 出线孔4MM | 宽*高 | 孔宽 | 齿宽 | 电线容量 | 标准长度 | |||
| 灰色Gray | 白色White | 蓝色Blue | 黑色Black | W*H | Q | P | 以2.0平方计算 | |
| ALVF1616F | ALVF1616FW | ALVF1616FE | ALVF1616FB | 16*16 | 5 | 5 | 3~10pcs | 每根2米 |
| ALVF1617F | ALVF1617FW | ALVF1617FE | ALVF1617FB | 25*16 | 5 | 5 | 3~10pcs | |
| ALVF1618F | ALVF1618FW | ALVF1618FE | ALVF1618FB | 15*20 | 4 | 6 | 8~12pcs | |
| ALVF1619F | ALVF1619FW | ALVF1619FE | ALVF1619FB | 20*20 | 4 | 6 | 10~20pcs | |
| ALVF1620F | ALVF1620FW | ALVF1620FE | ALVF1620FB | 40*20 | 4 | 6 | 12~28pcs | |
| ALVF1621F | ALVF1621FW | ALVF1621FE | ALVF1621FB | 15*25 | 5 | 6 | 5~15pcs | |
| ALVF1622F | ALVF1622FW | ALVF1622FE | ALVF1622FB | 20*20 | 4 | 6 | 5~15pcs | |
| ALVF1623F | ALVF1623FW | ALVF1623FE | ALVF1623FB | 25*25 | 4 | 6 | 10~25pcs | |
| ALVF1624F | ALVF1624FW | ALVF1624FE | ALVF1624FB | 30*25 | 4 | 6 | 12~28pcs | |
| ALVF1625F | ALVF1625FW | ALVF1625FE | ALVF1625FB | 40*25 | 4 | 6 | 12~28pcs | |
| ALVF1626F | ALVF1626FW | ALVF1626FE | ALVF1626FB | 50*25 | 4 | 6 | 20~30pcs | |
| ALVF1627F | ALVF1627FW | ALVF1627FE | ALVF1627FB | 15*30 | 4 | 6 | 20~30pcs | |
| ALVF1628F | ALVF1628FW | ALVF1628FE | ALVF1628FB | 20*30 | 4 | 6 | 20~30pcs | |
| ALVF1629F | ALVF1629FW | ALVF1629FE | ALVF1629FB | 25*30 | 4 | 6 | 25~35pcs | |
| ALVF1630F | ALVF1630FW | ALVF1630FE | ALVF1630FB | 30*30 | 4 | 6 | 25~35pcs | |
| ALVF1631F | ALVF1631FW | ALVF1631FE | ALVF1631FB | 40*30 | 4 | 6 | 30~40pcs | |
| ALVF1632F | ALVF1632FW | ALVF1632FE | ALVF1632FB | 50*30 | 4 | 6 | 35~45pcs | |
| ALVF1633F | ALVF1633FW | ALVF1633FE | ALVF1633FB | 60*30 | 4 | 6 | 40~50pcs | |
| ALVF1634F | ALVF1634FW | ALVF1634FE | ALVF1634FB | 22*33 | 5 | 6 | 30~45pcs | |
| ALVF1635F | ALVF1635FW | ALVF1635FE | ALVF1635FB | 33*33 | 4 | 6 | 35~45pcs | |
| ALVF1636F | ALVF1636FW | ALVF1636FE | ALVF1636FB | 20*35 | 4 | 6 | 30~40pcs | |
| ALVF1637F | ALVF1637FW | ALVF1637FE | ALVF1637FB | 35*35 | 4 | 6 | 35~45pcs | |
| ALVF1638F | ALVF1638FW | ALVF1638FE | ALVF1638FB | 50*35 | 4 | 6 | 40~60pcs | |
| ALVF1639F | ALVF1639FW | ALVF1639FE | ALVF1639FB | 20*40 | 4 | 6 | 16~22pcs | |
| ALVF1640F | ALVF1640FW | ALVF1640FE | ALVF1640FB | 25*40 | 4 | 6 | 20~25pcs | |
| ALVF1641F | ALVF1641FW | ALVF1641FE | ALVF1641FB | 35*40 | 4 | 6 | 50~60pcs | |
| ALVF1642F | ALVF1642FW | ALVF1642FE | ALVF1642FB | 40*40 | 4 | 6 | 60~70pcs | |
| ALVF1643F | ALVF1643FW | ALVF1643FE | ALVF1643FB | 60*40 | 4 | 6 | 100~115pcs | |
| ALVF1644F | ALVF1644FW | ALVF1644FE | ALVF1644FB | 80*40 | 4 | 6 | 120~135pcs | |
| ALVF1645F | ALVF1645FW | ALVF1645FE | ALVF1645FB | 100*40 | 4 | 6 | 120~135pcs | |
| ALVF1646F | ALVF1646FW | ALVF1646FE | ALVF1646FB | 120*40 | 4 | 6 | 140-155pcs | |
| ALVF1647F | ALVF1647FW | ALVF1647FE | ALVF1647FB | 25*45 | 4 | 6 | 20~25pcs | |
| ALVF1648F | ALVF1648FW | ALVF1648FE | ALVF1648FB | 33*45 | 4 | 6 | 40~55pcs | |
| ALVF1649F | ALVF1649FW | ALVF1649FE | ALVF1649FB | 45*45 | 4 | 6 | 60~70pcs | |
| ALVF1650F | ALVF1650FW | ALVF1650FE | ALVF1650FB | 65*45 | 4 | 6 | 110~120pcs | |
| ALVF1651F | ALVF1651FW | ALVF1651FE | ALVF1651FB | 20*50 | 4 | 6 | 18~28pcs | |
| ALVF1652F | ALVF1652FW | ALVF1652FE | ALVF1652FB | 25*50 | 4 | 6 | 20~30pcs | |
| ALVF1653F | ALVF1653FW | ALVF1653FE | ALVF1653FB | 30*50 | 4 | 6 | 25~40pcs | |
| ALVF1654F | ALVF1654FW | ALVF1654FE | ALVF1654FB | 35*50 | 4 | 6 | 40~60pcs | |
| ALVF1655F | ALVF1655FW | ALVF1655FE | ALVF1655FB | 40*50 | 4 | 6 | 60~70pcs | |
| ALVF1656F | ALVF1656FW | ALVF1656FE | ALVF1656FB | 45*50 | 4 | 6 | 70~80pcs | |
| ALVF1657F | ALVF1657FW | ALVF1657FE | ALVF1657FB | 50*50 | 4 | 6 | 80~90pcs | |
| ALVF1658F | ALVF1658FW | ALVF1658FE | ALVF1658FB | 55*50 | 4 | 6 | 80~90pcs | |
| ALVF1659F | ALVF1659FW | ALVF1659FE | ALVF1659FB | 60*50 | 4 | 6 | 100~120pcs | |
| ALVF1660F | ALVF1660FW | ALVF1660FE | ALVF1660FB | 75*50 | 4 | 6 | 120~140pcs | |
| ALVF1661F | ALVF1661FW | ALVF1661FE | ALVF1661FB | 80*50 | 4 | 6 | 160~180pcs | |
| ALVF1662F | ALVF1662FW | ALVF1662FE | ALVF1662FB | 100*50 | 4 | 6 | 200~250pcs | |
| ALVF1663F | ALVF1663FW | ALVF1663FE | ALVF1663FB | 125*55 | 4 | 6 | 220~270pcs | |
| ALVF1664F | ALVF1664FW | ALVF1664FE | ALVF1664FB | 20*60 | 4 | 6 | 35~45pcs | |
| ALVF1665F | ALVF1665FW | ALVF1665FE | ALVF1665FB | 25*60 | 4 | 6 | 40~50pcs | |
| ALVF1666F | ALVF1666FW | ALVF1666FE | ALVF1666FB | 30*60 | 4 | 6 | 60~80pcs | |
| ALVF1667F | ALVF1667FW | ALVF1667FE | ALVF1667FB | 35*60 | 4 | 6 | 90~105pcs | |
| ALVF1668F | ALVF1668FW | ALVF1668FE | ALVF1668FB | 40*60 | 4 | 6 | 100~115pcs | |
| ALVF1669F | ALVF1669FW | ALVF1669FE | ALVF1669FB | 45*60 | 4 | 6 | 110~125pcs | |
| ALVF1670F | ALVF1670FW | ALVF1670FE | ALVF1670FB | 50*60 | 4 | 6 | 120~135pcs | |
| ALVF1671F | ALVF1671FW | ALVF1671FE | ALVF1671FB | 60*60 | 4 | 6 | 120~135pcs | |
| ALVF1672F | ALVF1672FW | ALVF1672FE | ALVF1672FB | 80*60 | 4 | 6 | 180~210pcs | |
| ALVF1673F | ALVF1673FW | ALVF1673FE | ALVF1673FB | 100*60 | 4 | 6 | 240~290pcs | |
| ALVF1674F | ALVF1674FW | ALVF1674FE | ALVF1674FB | 110*60 | 4 | 6 | 250~300pcs | |
| ALVF1675F | ALVF1675FW | ALVF1675FE | ALVF1675FB | 120*60 | 4 | 6 | 260~320pcs | |
| ALVF1676F | ALVF1676FW | ALVF1676FE | ALVF1676FB | 150*60 | 4 | 6 | 300~360pcs | |
| ALVF1677F | ALVF1677FW | ALVF1677FE | ALVF1677FB | 25*65 | 4 | 6 | 40~50pcs | |
| ALVF1678F | ALVF1678FW | ALVF1678FE | ALVF1678FB | 33*65 | 4 | 6 | 40~70pcs | |
| ALVF1679F | ALVF1679FW | ALVF1679FE | ALVF1679FB | 45*65 | 4 | 6 | 110~120pcs | |
| ALVF1680F | ALVF1680FW | ALVF1680FE | ALVF1680FB | 65*65 | 4 | 6 | 180~200pcs | |
| ALVF1681F | ALVF1681FW | ALVF1681FE | ALVF1681FB | 72*65 | 4 | 6 | 180~230pcs | |
| ALVF1682F | ALVF1682FW | ALVF1682FE | ALVF1682FB | 25*75 | 4 | 6 | 180-210pcs | |
| ALVF1683F | ALVF1683FW | ALVF1683FE | ALVF1683FB | 35*75 | 4 | 6 | 180-210pcs | |
| ALVF1684F | ALVF1684FW | ALVF1684FE | ALVF1684FB | 50*75 | 4 | 6 | 180~210pcs | |
| ALVF1685F | ALVF1685FW | ALVF1685FE | ALVF1685FB | 75*75 | 4 | 6 | 200~240pcs | |
| ALVF1686F | ALVF1686FW | ALVF1686FE | ALVF1686FB | 100*75 | 4 | 6 | 240~280pcs | |
| ALVF1687F | ALVF1687FW | ALVF1687FE | ALVF1687FB | 25*80 | 4 | 6 | 100~120pcs | |
| ALVF1688F | ALVF1688FW | ALVF1688FE | ALVF1688FB | 30*80 | 4 | 6 | 110~125pcs | |
| ALVF1689F | ALVF1689FW | ALVF1689FE | ALVF1689FB | 35*80 | 4 | 6 | 110~130pcs | |
| ALVF1690F | ALVF1690FW | ALVF1690FE | ALVF1690FB | 40*80 | 4 | 6 | 140~160pcs | |
| ALVF1691F | ALVF1691FW | ALVF1691FE | ALVF1691FB | 45*80 | 4 | 6 | 140~160pcs | |
| ALVF1692F | ALVF1692FW | ALVF1692FE | ALVF1692FB | 50*80 | 4 | 6 | 160~180pcs | |
| ALVF1693F | ALVF1693FW | ALVF1693FE | ALVF1693FB | 55*80 | 4 | 6 | 160~180pcs | |
| ALVF1694F | ALVF1694FW | ALVF1694FE | ALVF1694FB | 60*80 | 4 | 6 | 180~210pcs | |
| ALVF1695F | ALVF1695FW | ALVF1695FE | ALVF1695FB | 80*80 | 4 | 6 | 240~290pcs | |
| ALVF1696F | ALVF1696FW | ALVF1696FE | ALVF1696FB | 100*80 | 4 | 6 | 260~350pcs | |
| ALVF1697F | ALVF1697FW | ALVF1697FE | ALVF1697FB | 120*80 | 4 | 6 | 280~380pcs | |
| ALVF1698F | ALVF1698FW | ALVF1698FE | ALVF1698FB | 140*80 | 4 | 6 | 350~450pcs | |
| ALVF1699F | ALVF1699FW | ALVF1699FE | ALVF1699FB | 160*80 | 4 | 6 | 50-550pcs | |
| ALVF1700F | ALVF1700FW | ALVF1700FE | ALVF1700FB | 25*100 | 4 | 6 | 110~160pcs | |
| ALVF1701F | ALVF1701FW | ALVF1701FE | ALVF1701FB | 33*100 | 4 | 6 | 130~175pcs | |
| ALVF1702F | ALVF1702FW | ALVF1702FE | ALVF1702FB | 40*100 | 4 | 6 | 130~175pcs | |
| ALVF1703F | ALVF1703FW | ALVF1703FE | ALVF1703FB | 50*100 | 4 | 6 | 220~250pcs | |
| ALVF1704F | ALVF1704FW | ALVF1704FE | ALVF1704FB | 60*100 | 4 | 6 | 240~290pcs | |
| ALVF1705F | ALVF1705FW | ALVF1705FE | ALVF1705FB | 70*100 | 4 | 6 | 250~310pcs | |
| ALVF1706F | ALVF1706FW | ALVF1706FE | ALVF1706FB | 75*100 | 4 | 6 | 260~350pcs | |
| ALVF1707F | ALVF1707FW | ALVF1707FE | ALVF1707FB | 80*100 | 4 | 6 | 260~350pcs | |
| ALVF1708F | ALVF1708FW | ALVF1708FE | ALVF1708FB | 100*100 | 4 | 6 | 300~400pcs | |
| ALVF1709F | ALVF1709FW | ALVF1709FE | ALVF1709FB | 120*100 | 4 | 6 | 350~450pcs | |
| ALVF1710F | ALVF1710FW | ALVF1710FE | ALVF1710FB | 150*100 | 4 | 6 | 400~650pcs | |
| ALVF1711F | ALVF1711FW | ALVF1711FE | ALVF1711FB | 150*130 | 4 | 6 | 400~650pcs | |
| ALVF1712F | ALVF1712FW | ALVF1712FE | ALVF1712FB | 160*100 | 4 | 6 | 500-750pcs | |
| ALVF1713F | ALVF1713FW | ALVF1713FE | ALVF1713FB | 100*130 | 4 | 6 | 350-450pcs | |
| ALVF1714F | ALVF1714FW | ALVF1714FE | ALVF1714FB | 200*100 | 4 | 6 | 600~800pcs | |
| ALVF1715F | ALVF1715FW | ALVF1715FE | ALVF1715FB | 200*150 | 4 | 6 | 900-1200pcs | |
| ALVF1716F | ALVF1716FW | ALVF1716FE | ALVF1716FB | 200*200 | 4 | 6 | 1200-1600pcs | |
