![_0QX4)T]VH`]2N]EX25~%WA.png](/data/images/product/qakhzas0z1m701.png "_0QX4)T]VH`]2N]EX25~%WA.png")
产品材质:采用低卤素硬质PVC料制成,环保无污染,不含铅等有毒物。
产品认证:美国UL:E306674 欧洲CE 欧洲环保RoHS,REACH,铁道阻燃低烟。
防火等级:UL94V-0,低烟微卤,遇火不燃烧,防火性及绝缘性特佳。
产品构造:由槽底及槽盖组成,底槽两侧设有出线孔。
颜 色:灰色.白色.蓝色.黑色
工作温度:静态-40°C持续高温至70°C。
使用方法:先将底槽固定,将所要配的线装入槽内,盖上槽盖即可。
产品特性:1.反扣式槽盖与槽体设计组合後绝不脱落,且接合面平滑,不割伤手 及擦损附近配线。
2.配线槽70°C内不易断裂,变形,变色,装配省时便利。
3.出线孔低、组合容易、拆卸简单、易于配线。
![4B5$TI72WZK)WFW]4SUSM3I.png](/data/images/product/wplaakucznk702.png "4B5$TI72WZK)WFW]4SUSM3I.png")

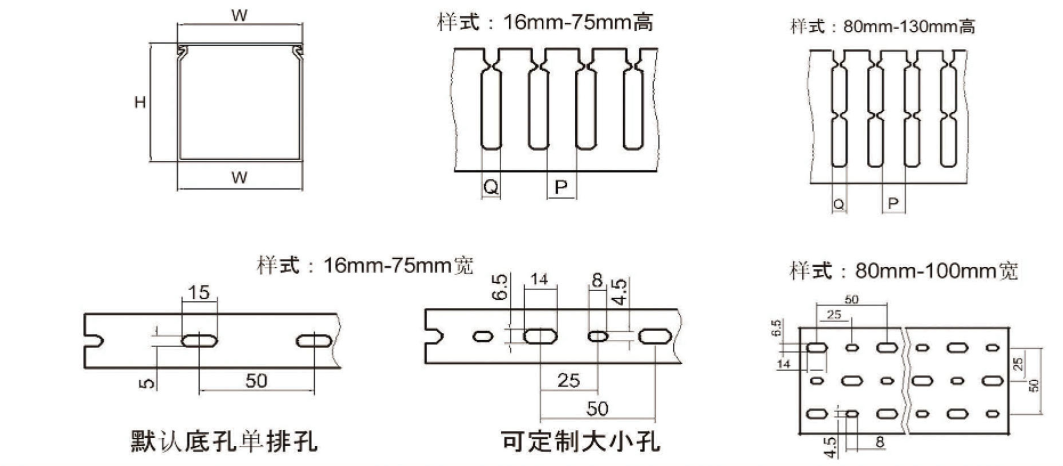

| 型号Item No. 出线孔8MM | 宽*高 | 孔宽 | 齿宽 | 电线容量 | 标准长度 | |||
| 灰色Gray | 白色White | 蓝色Blue | 黑色Black | W*H | Q | P | 以2.0平方计算 | |
| ALVH1616F | ALVH1616FW | ALVH1616FE | ALVH1616FB | 16*16 | 8 | 10 | 3~10pcs | 每支2米 |
| ALVH1617F | ALVH1617FW | ALVH1617FE | ALVH1617FB | 25*16 | 8 | 10 | 3~10pcs | |
| ALVH1618F | ALVH1618FW | ALVH1618FE | ALVH1618FB | 15*20 | 8.5 | 12 | 8~12pcs | |
| ALVH1619F | ALVH1619FW | ALVH1619FE | ALVH1619FB | 20*20 | 8.5 | 12 | 10~20pcs | |
| ALVH1620F | ALVH1620FW | ALVH1620FE | ALVH1620FB | 40*20 | 8 | 12 | 12~28pcs | |
| ALVH1621F | ALVH1621FW | ALVH1621FE | ALVH1621FB | 15*25 | 8 | 10 | 5~15pcs | |
| ALVH1622F | ALVH1622FW | ALVH1622FE | ALVH1622FB | 20*20 | 8 | 10 | 5~15pcs | |
| ALVH1623F | ALVH1623FW | ALVH1623FE | ALVH1623FB | 25*25 | 8 | 10 | 10~25pcs | |
| ALVH1624F | ALVH1624FW | ALVH1624FE | ALVH1624FB | 30*25 | 8 | 10 | 12~28pcs | |
| ALVH1625F | ALVH1625FW | ALVH1625FE | ALVH1625FB | 40*25 | 8 | 10 | 12~28pcs | |
| ALVH1626F | ALVH1626FW | ALVH1626FE | ALVH1626FB | 50*25 | 8 | 10 | 20~30pcs | |
| ALVH1627F | ALVH1627FW | ALVH1627FE | ALVH1627FB | 15*30 | 8 | 10 | 20~30pcs | |
| ALVH1628F | ALVH1628FW | ALVH1628FE | ALVH1628FB | 20*30 | 8 | 10 | 20~30pcs | |
| ALVH1629F | ALVH1629FW | ALVH1629FE | ALVH1629FB | 25*30 | 8 | 12 | 25~35pcs | |
| ALVH1630F | ALVH1630FW | ALVH1630FE | ALVH1630FB | 30*30 | 8 | 12 | 25~35pcs | |
| ALVH1631F | ALVH1631FW | ALVH1631FE | ALVH1631FB | 40*30 | 8 | 12 | 30~40pcs | |
| ALVH1632F | ALVH1632FW | ALVH1632FE | ALVH1632FB | 50*30 | 8 | 12 | 35~45pcs | |
| ALVH1633F | ALVH1633FW | ALVH1633FE | ALVH1633FB | 60*30 | 8 | 12 | 40~50pcs | |
| ALVH1634F | ALVH1634FW | ALVH1634FE | ALVH1634FB | 22*33 | 8 | 12 | 30~45pcs | |
| ALVH1635F | ALVH1635FW | ALVH1635FE | ALVH1635FB | 33*33 | 8 | 12 | 35~45pcs | |
| ALVH1636F | ALVH1636FW | ALVH1636FE | ALVH1636FB | 20*35 | 8 | 12 | 30~40pcs | |
| ALVH1637F | ALVH1637FW | ALVH1637FE | ALVH1637FB | 35*35 | 8 | 12 | 35~45pcs | |
| ALVH1638F | ALVH1638FW | ALVH1638FE | ALVH1638FB | 50*35 | 8 | 12 | 40~60pcs | |
| ALVH1639F | ALVH1639FW | ALVH1639FE | ALVH1639FB | 20*40 | 8 | 12 | 16~22pcs | |
| ALVH1640F | ALVH1640FW | ALVH1640FE | ALVH1640FB | 25*40 | 8 | 12 | 20~25pcs | |
| ALVH1641F | ALVH1641FW | ALVH1641FE | ALVH1641FB | 35*40 | 8 | 12 | 50~60pcs | |
| ALVH1642F | ALVH1642FW | ALVH1642FE | ALVH1642FB | 40*40 | 8 | 12 | 60~70pcs | |
| ALVH1643F | ALVH1643FW | ALVH1643FE | ALVH1643FB | 60*40 | 8 | 12 | 100~115pcs | |
| ALVH1644F | ALVH1644FW | ALVH1644FE | ALVH1644FB | 80*40 | 8 | 12 | 120~135pcs | |
| ALVH1645F | ALVH1645FW | ALVH1645FE | ALVH1645FB | 100*40 | 8 | 12 | 120~135pcs | |
| ALVH1646F | ALVH1646FW | ALVH1646FE | ALVH1646FB | 120*40 | 8 | 12 | 140-155pcs | |
| ALVH1647F | ALVH1647FW | ALVH1647FE | ALVH1647FB | 25*45 | 8 | 12 | 20~25pcs | |
| ALVH1648F | ALVH1648FW | ALVH1648FE | ALVH1648FB | 33*45 | 8 | 12 | 40~55pcs | |
| ALVH1649F | ALVH1649FW | ALVH1649FE | ALVH1649FB | 45*45 | 8 | 12 | 60~70pcs | |
| ALVH1650F | ALVH1650FW | ALVH1650FE | ALVH1650FB | 65*45 | 8 | 12 | 110~120pcs | |
| ALVH1651F | ALVH1651FW | ALVH1651FE | ALVH1651FB | 20*50 | 8 | 12 | 18~28pcs | |
| ALVH1652F | ALVH1652FW | ALVH1652FE | ALVH1652FB | 25*50 | 8 | 12 | 20~30pcs | |
| ALVH1653F | ALVH1653FW | ALVH1653FE | ALVH1653FB | 30*50 | 8 | 12 | 25~40pcs | |
| ALVH1654F | ALVH1654FW | ALVH1654FE | ALVH1654FB | 35*50 | 8 | 12 | 40~60pcs | |
| ALVH1655F | ALVH1655FW | ALVH1655FE | ALVH1655FB | 40*50 | 8 | 12 | 60~70pcs | |
| ALVH1656F | ALVH1656FW | ALVH1656FE | ALVH1656FB | 45*50 | 8 | 12 | 70~80pcs | |
| ALVH1657F | ALVH1657FW | ALVH1657FE | ALVH1657FB | 50*50 | 8 | 12 | 80~90pcs | |
| ALVH1658F | ALVH1658FW | ALVH1658FE | ALVH1658FB | 55*50 | 8 | 12 | 80~90pcs | |
| ALVH1659F | ALVH1659FW | ALVH1659FE | ALVH1659FB | 60*50 | 8 | 12 | 100~120pcs | |
| ALVH1660F | ALVH1660FW | ALVH1660FE | ALVH1660FB | 75*50 | 8 | 12 | 120~140pcs | |
| ALVH1661F | ALVH1661FW | ALVH1661FE | ALVH1661FB | 80*50 | 8 | 12 | 160~180pcs | |
| ALVH1662F | ALVH1662FW | ALVH1662FE | ALVH1662FB | 100*50 | 8 | 12 | 200~250pcs | |
| ALVH1663F | ALVH1663FW | ALVH1663FE | ALVH1663FB | 125*55 | 8 | 12 | 220~270pcs | |
| ALVH1664F | ALVH1664FW | ALVH1664FE | ALVH1664FB | 20*60 | 8 | 12 | 35~45pcs | |
| ALVH1665F | ALVH1665FW | ALVH1665FE | ALVH1665FB | 25*60 | 8 | 12 | 40~50pcs | |
| ALVH1666F | ALVH1666FW | ALVH1666FE | ALVH1666FB | 30*60 | 8 | 12 | 60~80pcs | |
| ALVH1667F | ALVH1667FW | ALVH1667FE | ALVH1667FB | 35*60 | 8 | 12 | 90~105pcs | |
| ALVH1668F | ALVH1668FW | ALVH1668FE | ALVH1668FB | 40*60 | 8 | 12 | 100~115pcs | |
| ALVH1669F | ALVH1669FW | ALVH1669FE | ALVH1669FB | 45*60 | 8 | 12 | 110~125pcs | |
| ALVH1670F | ALVH1670FW | ALVH1670FE | ALVH1670FB | 50*60 | 8 | 12 | 120~135pcs | |
| ALVH1671F | ALVH1671FW | ALVH1671FE | ALVH1671FB | 60*60 | 8 | 12 | 120~135pcs | |
| ALVH1672F | ALVH1672FW | ALVH1672FE | ALVH1672FB | 80*60 | 8 | 12 | 180~210pcs | |
| ALVH1673F | ALVH1673FW | ALVH1673FE | ALVH1673FB | 100*60 | 8 | 12 | 240~290pcs | |
| ALVH1674F | ALVH1674FW | ALVH1674FE | ALVH1674FB | 110*60 | 8 | 12 | 250~300pcs | |
| ALVH1675F | ALVH1675FW | ALVH1675FE | ALVH1675FB | 120*60 | 8 | 12 | 260~320pcs | |
| ALVH1676F | ALVH1676FW | ALVH1676FE | ALVH1676FB | 150*60 | 8 | 12 | 300~360pcs | |
| ALVH1677F | ALVH1677FW | ALVH1677FE | ALVH1677FB | 25*65 | 8 | 12 | 40~50pcs | |
| ALVH1678F | ALVH1678FW | ALVH1678FE | ALVH1678FB | 33*65 | 8 | 12 | 40~70pcs | |
| ALVH1679F | ALVH1679FW | ALVH1679FE | ALVH1679FB | 45*65 | 8 | 12 | 110~120pcs | |
| ALVH1680F | ALVH1680FW | ALVH1680FE | ALVH1680FB | 65*65 | 8 | 12 | 180~200pcs | |
| ALVH1681F | ALVH1681FW | ALVH1681FE | ALVH1681FB | 72*65 | 8 | 12 | 180~230pcs | |
| ALVH1682F | ALVH1682FW | ALVH1682FE | ALVH1682FB | 25*75 | 8 | 12 | 180-210pcs | |
| ALVH1683F | ALVH1683FW | ALVH1683FE | ALVH1683FB | 35*75 | 8 | 12 | 180-210pcs | |
| ALVH1684F | ALVH1684FW | ALVH1684FE | ALVH1684FB | 50*75 | 8 | 12 | 180~210pcs | |
| ALVH1685F | ALVH1685FW | ALVH1685FE | ALVH1685FB | 75*75 | 8 | 12 | 200~240pcs | |
| ALVH1686F | ALVH1686FW | ALVH1686FE | ALVH1686FB | 100*75 | 8 | 12 | 240~280pcs | |
| ALVH1687F | ALVH1687FW | ALVH1687FE | ALVH1687FB | 25*80 | 8 | 12 | 100~120pcs | |
| ALVH1688F | ALVH1688FW | ALVH1688FE | ALVH1688FB | 30*80 | 8 | 12 | 110~125pcs | |
| ALVH1689F | ALVH1689FW | ALVH1689FE | ALVH1689FB | 35*80 | 8 | 12 | 110~130pcs | |
| ALVH1690F | ALVH1690FW | ALVH1690FE | ALVH1690FB | 40*80 | 8 | 12 | 140~160pcs | |
| ALVH1691F | ALVH1691FW | ALVH1691FE | ALVH1691FB | 45*80 | 8 | 12 | 140~160pcs | |
| ALVH1692F | ALVH1692FW | ALVH1692FE | ALVH1692FB | 50*80 | 8 | 12 | 160~180pcs | |
| ALVH1693F | ALVH1693FW | ALVH1693FE | ALVH1693FB | 55*80 | 8 | 12 | 160~180pcs | |
| ALVH1694F | ALVH1694FW | ALVH1694FE | ALVH1694FB | 60*80 | 8 | 12 | 180~210pcs | |
| ALVH1695F | ALVH1695FW | ALVH1695FE | ALVH1695FB | 80*80 | 8 | 12 | 240~290pcs | |
| ALVH1696F | ALVH1696FW | ALVH1696FE | ALVH1696FB | 100*80 | 8 | 12 | 260~350pcs | |
| ALVH1697F | ALVH1697FW | ALVH1697FE | ALVH1697FB | 120*80 | 8 | 12 | 280~380pcs | |
| ALVH1698F | ALVH1698FW | ALVH1698FE | ALVH1698FB | 140*80 | 8 | 12 | 350~450pcs | |
| ALVH1699F | ALVH1699FW | ALVH1699FE | ALVH1699FB | 160*80 | 8 | 12 | 450-550pcs | |
| ALVH1700F | ALVH1700FW | ALVH1700FE | ALVH1700FB | 25*100 | 8 | 12 | 110~160pcs | |
| ALVH1701F | ALVH1701FW | ALVH1701FE | ALVH1701FB | 33*100 | 8 | 12 | 130~175pcs | |
| ALVH1702F | ALVH1702FW | ALVH1702FE | ALVH1702FB | 40*100 | 8 | 12 | 130~175pcs | |
| ALVH1703F | ALVH1703FW | ALVH1703FE | ALVH1703FB | 50*100 | 8 | 12 | 220~250pcs | |
| ALVH1704F | ALVH1704FW | ALVH1704FE | ALVH1704FB | 60*100 | 8 | 12 | 240~290pcs | |
| ALVH1705F | ALVH1705FW | ALVH1705FE | ALVH1705FB | 70*100 | 8 | 12 | 250~310pcs | |
| ALVH1706F | ALVH1706FW | ALVH1706FE | ALVH1706FB | 75*100 | 8 | 12 | 260~350pcs | |
| ALVH1707F | ALVH1707FW | ALVH1707FE | ALVH1707FB | 80*100 | 8 | 12 | 260~350pcs | |
| ALVH1708F | ALVH1708FW | ALVH1708FE | ALVH1708FB | 100*100 | 8 | 12 | 300~400pcs | |
| ALVH1709F | ALVH1709FW | ALVH1709FE | ALVH1709FB | 120*100 | 8 | 12 | 350~450pcs | |
| ALVH1710F | ALVH1710FW | ALVH1710FE | ALVH1710FB | 150*100 | 8 | 12 | 400~650pcs | |
| ALVH1711F | ALVH1711FW | ALVH1711FE | ALVH1711FB | 150*100 | 8 | 12 | 400~650pcs | |
| ALVH1712F | ALVH1712FW | ALVH1712FE | ALVH1712FB | 160*100 | 8 | 12 | 500-750pcs | |
| ALVH1713F | ALVH1713FW | ALVH1713FE | ALVH1713FB | 100*130 | 8 | 12 | 350-400pcs | |
| ALVH1714F | ALVH1714FW | ALVH1714FE | ALVH1714FB | 200*100 | 8 | 12 | 600~800pcs | |
| ALVH1715F | ALVH1715FW | ALVH1715FE | ALVH1715FB | 200*150 | 8 | 12 | 900-1200pcs | |
| ALVH1716F | ALVH1716FW | ALVH1716FE | ALVH1716FB | 200*200 | 8 | 12 | 1200-1600pcs | |
