产品材质:采用低卤素硬质PVC料制成,环保无 污染,不含铅等有毒物。
产品认证:美国UL:E306674 欧洲CE:EN50085 欧洲环保RoHS,REACH。
防火等级:UL94V-0,低烟微卤,遇火不燃烧,防火性及绝缘性特佳。

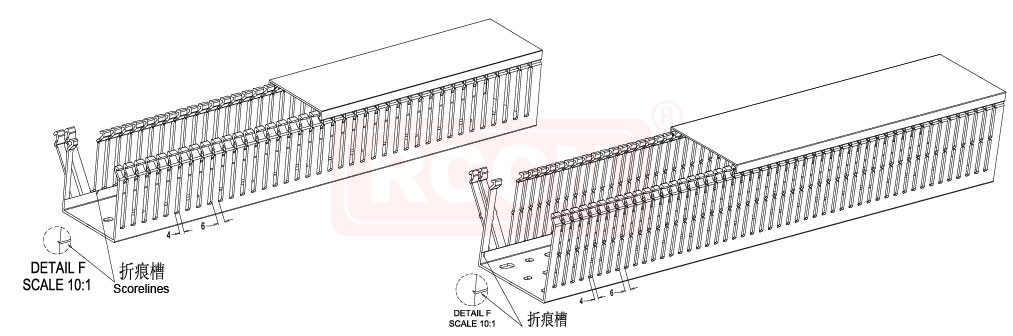

产品构造:由槽底及槽盖组成,底槽两侧设有 出线孔。
颜 色:灰色.白色.蓝色.黑色（可定制其它颜色，有起订量要求）
工作温度:静态-40°C持续高温至65°C，短时间可达85°C。
使用方法:先将底槽固定,将所要配的线装入槽内,盖上槽盖即可。
产品特性:1.反扣式槽盖与槽体设计组合绝不脱落,且接合面平滑,不割伤手及擦损附近配线。
2.配线槽65°C内不易断裂,变形,变色,装配省时便利。
3.出线孔低、组合容易、拆卸简单、易于配线。
4.易折断型为内部两侧带折痕设计,可依安装者需求，折出需要的边孔大小。

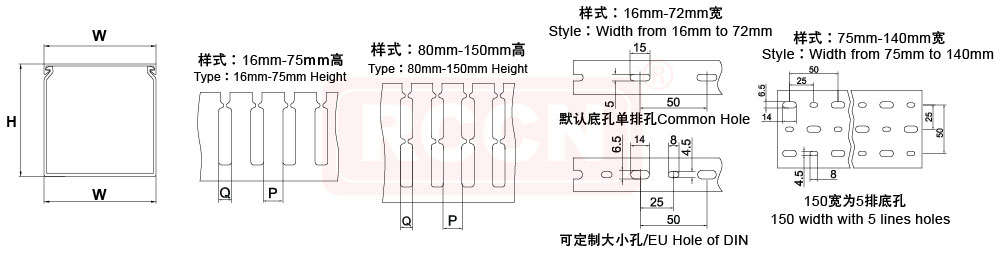

| 型号Item No. | 宽*高 W*H | 孔宽 Q | 齿宽 P | 电线容量 以2.0平方计算 | 装箱 /M | |||
| 灰色Gray | 白色White | 蓝色Blue | 黑色Black | |||||
| HVDR1616FZ | HVDR1616FZW | HVDR1616FZE | HVDR1616FZB | 16*16 | 5 | 5 | 3-10pcs | 300M |
| HVDR2516FZ | HVDR2516FZW | HVDR2516FZE | HVDR2516FZB | 25*16 | 5 | 5 | 8-12pcs | 260M |
| HVDR1520FZ | HVDR1520FZW | HVDR1520FZE | HVDR1520FZB | 15*20 | 4 | 6 | 8-12pcs | 260M |
| HVDR2020FZ | HVDR2020FZW | HVDR2020FZE | HVDR2020FZB | 20*20 | 4 | 6 | 10-20pcs | 240M |
| HVDR4020FZ | HVDR4020FZW | HVDR4020FZE | HVDR4020FZB | 40*20 | 4 | 6 | 15-30pcs | 140M |
| HVDR1525FZ | HVDR1525FZW | HVDR1525FZE | HVDR1525FZB | 15*25 | 4 | 6 | 5-15pcs | 260M |
| HVDR2025FZ | HVDR2025FZW | HVDR2025FZE | HVDR2025FZB | 20*25 | 4 | 6 | 12-28pcs | 160M |
| HVDR2525FZ | HVDR2525FZW | HVDR2525FZE | HVDR2525FZB | 25*25 | 4 | 6 | 10~25pcs | 200M |
| HVDR3025FZ | HVDR3025FZW | HVDR3025FZE | HVDR3025FZB | 30*25 | 4 | 6 | 12-28pcs | 160M |
| HVDR4025FZ | HVDR4025FZW | HVDR4025FZE | HVDR4025FZB | 40*25 | 4 | 6 | 20-35pcs | 100M |
| HVDR5025FZ | HVDR5025FZW | HVDR5025FZE | HVDR5025FZB | 50*25 | 4 | 6 | 12-28pcs | 100M |
| HVDR1530FZ | HVDR1530FZW | HVDR1530FZE | HVDR1530FZB | 15*30 | 4 | 6 | 8-15pcs | 180M |
| HVDR2030FZ | HVDR2030FZW | HVDR2030FZE | HVDR2030FZB | 20*30 | 4 | 6 | 25-35pcs | 160M |
| HVDR2530FZ | HVDR2530FZW | HVDR2530FZE | HVDR2530FZB | 25*30 | 4 | 6 | 25~35pcs | 160M |
| HVDR3030FZ | HVDR3030FZW | HVDR3030FZE | HVDR3030FZB | 30*30 | 4 | 6 | 25~35pcs | 140M |
| HVDR4030FZ | HVDR4030FZW | HVDR4030FZE | HVDR4030FZB | 40*30 | 4 | 6 | 30-40pcs | 100M |
| HVDR5030FZ | HVDR5030FZW | HVDR5030FZE | HVDR5030FZB | 50*30 | 4 | 6 | 40-50pcs | 80M |
| HVDR6030FZ | HVDR6030FZW | HVDR6030FZE | HVDR6030FZB | 60*30 | 4 | 6 | 50-60pcs | 60M |
| HVDR2233FZ | HVDR2233FZW | HVDR2233FZE | HVDR2233FZB | 22*33 | 4 | 6 | 25-35pcs | 160M |
| HVDR3333FZ | HVDR3333FZW | HVDR3333FZE | HVDR3333FZB | 33*33 | 4 | 6 | 35-45pcs | 160M |
| HVDR2035FZ | HVDR2035FZW | HVDR2035FZE | HVDR2035FZB | 20*35 | 4 | 6 | 30-40pcs | 100M |
| HVDR3535FZ | HVDR3535FZW | HVDR3535FZE | HVDR3535FZB | 35*35 | 4 | 6 | 35-45pcs | 112M |
| HVDR5035FZ | HVDR5035FZW | HVDR5035FZE | HVDR5035FZB | 50*35 | 4 | 6 | 40-60pcs | 88M |
| HVDR2040FZ | HVDR2040FZW | HVDR2040FZE | HVDR2040FZB | 20*40 | 4 | 6 | 16-22pcs | 110M |
| HVDR2540FZ | HVDR2540FZW | HVDR2540FZE | HVDR2540FZB | 25*40 | 4 | 6 | 20~25pcs | 112M |
| HVDR3540FZ | HVDR3540FZW | HVDR3540FZE | HVDR3540FZB | 35*40 | 4 | 6 | 30-45pcs | 100M |
| HVDR4040FZ | HVDR4040FZW | HVDR4040FZE | HVDR4040FZB | 40*40 | 4 | 6 | 60~70pcs | 100M |
| HVDR6040FZ | HVDR6040FZW | HVDR6040FZE | HVDR6040FZB | 60*40 | 4 | 6 | 100~115pcs | 68M |
| HVDR8040FZ | HVDR8040FZW | HVDR8040FZE | HVDR8040FZB | 80*40 | 4 | 6 | 120~135pcs | 48M |
| HVDR10040FZ | HVDR10040FZW | HVDR10040FZE | HVDR10040FZB | 100*40 | 4 | 6 | 120~135pcs | 32M |
| HVDR12040FZ | HVDR12040FZW | HVDR12040FZE | HVDR12040FZB | 120*40 | 4 | 6 | 140-155pcs | / |
| HVDR2545FZ | HVDR2545FZW | HVDR2545FZE | HVDR2545FZB | 25*45 | 4 | 6 | 20-25pcs | 104M |
| HVDR3345FZ | HVDR3345FZW | HVDR3345FZE | HVDR3345FZB | 33*45 | 4 | 6 | 40-55pcs | 108M |
| HVDR4545FZ | HVDR4545FZW | HVDR4545FZE | HVDR4545FZB | 45*45 | 4 | 6 | 60-70pcs | 72M |
| HVDR6545FZ | HVDR6545FZW | HVDR6545FZE | HVDR6545FZB | 65*45 | 4 | 6 | 110-120pcs | 56M |
| HVDR2050FZ | HVDR2050FZW | HVDR2050FZE | HVDR2050FZB | 20*50 | 4 | 6 | 18-28pcs | 100M |
| HVDR2550FZ | HVDR2550FZW | HVDR2550FZE | HVDR2550FZB | 25*50 | 4 | 6 | 20~30pcs | 100M |
| HVDR3050FZ | HVDR3050FZW | HVDR3050FZE | HVDR3050FZB | 30*50 | 4 | 6 | 25~40pcs | 84M |
| HVDR3550FZ | HVDR3550FZW | HVDR3550FZE | HVDR3550FZB | 35*50 | 4 | 6 | 40~60pcs | 80M |
| HVDR4050FZ | HVDR4050FZW | HVDR4050FZE | HVDR4050FZB | 40*50 | 4 | 6 | 60~70pcs | 68M |
| HVDR4550FZ | HVDR4550FZW | HVDR4550FZE | HVDR4550FZB | 45*50 | 4 | 6 | 70~80pcs | 60M |
| HVDR5050FZ | HVDR5050FZW | HVDR5050FZE | HVDR5050FZB | 50*50 | 4 | 6 | 80~90pcs | 60M |
| HVDR5550FZ | HVDR5550FZW | HVDR5550FZE | HVDR5550FZB | 55*50 | 4 | 6 | 85-95pcs | 48M |
| HVDR6050FZ | HVDR6050FZW | HVDR6050FZE | HVDR6050FZB | 60*50 | 4 | 6 | 100~120pcs | 48M |
| HVDR7550FZ | HVDR7550FZW | HVDR7550FZE | HVDR7550FZB | 75*50 | 4 | 6 | 150-170pcs | 40M |
| HVDR8050FZ | HVDR8050FZW | HVDR8050FZE | HVDR8050FZB | 80*50 | 4 | 6 | 160~180pcs | 40M |
| HVDR10050FZ | HVDR10050FZW | HVDR10050FZE | HVDR10050FZB | 100*50 | 4 | 6 | 200~250pcs | 26M |
| HVDR12555FZ | HVDR12555FZW | HVDR12555FZE | HVDR12555FZB | 125*55 | 4 | 6 | 220-270pcs | 20M |
| HVDR2060FZ | HVDR2060FZW | HVDR2060FZE | HVDR2060FZB | 20*60 | 4 | 6 | 35-45pcs | 100M |
| HVDR2560FZ | HVDR2560FZW | HVDR2560FZE | HVDR2560FZB | 25*60 | 4 | 6 | 40~50pcs | 100M |
| HVDR3060FZ | HVDR3060FZW | HVDR3060FZE | HVDR3060FZB | 30*60 | 4 | 6 | 60~80pcs | 80M |
| HVDR3560FZ | HVDR3560FZW | HVDR3560FZE | HVDR3560FZB | 35*60 | 4 | 6 | 90-105pcs | 78M |
| HVDR4060FZ | HVDR4060FZW | HVDR4060FZE | HVDR4060FZB | 40*60 | 4 | 6 | 100~115pcs | 60M |
| HVDR4560FZ | HVDR4560FZW | HVDR4560FZE | HVDR4560FZB | 45*60 | 4 | 6 | 110~125pcs | 30M |
| HVDR5060FZ | HVDR5060FZW | HVDR5060FZE | HVDR5060FZB | 50*60 | 4 | 6 | 120~135pcs | 60M |
| HVDR6060FZ | HVDR6060FZW | HVDR6060FZE | HVDR6060FZB | 60*60 | 4 | 6 | 120~135pcs | 48M |
| HVDR8060FZ | HVDR8060FZW | HVDR8060FZE | HVDR8060FZB | 80*60 | 4 | 6 | 180~210pcs | 36M |
| HVDR10060FZ | HVDR10060FZW | HVDR10060FZE | HVDR10060FZB | 100*60 | 4 | 6 | 240~290pcs | 28M |
| HVDR11060FZ | HVDR11060FZW | HVDR11060FZE | HVDR11060FZB | 110*60 | 4 | 6 | 250~300pcs | 48M |
| HVDR12060FZ | HVDR12060FZW | HVDR12060FZE | HVDR12060FZB | 120*60 | 4 | 6 | 260~320pcs | 48M |
| HVDR15060FZ | HVDR15060FZW | HVDR15060FZ | HVDR15060FZB | 150*60 | 4 | 6 | 300-360pcs | 16M |
| HVDR2565FZ | HVDR2565FZW | HVDR2565FZE | HVDR2565FZB | 25*65 | 4 | 6 | 40-50pcs | 88M |
| HVDR3565FZ | HVDR3565FZW | HVDR3565FZE | HVDR3565FZB | 35*65 | 4 | 6 | 40-70pcs | 80M |
| HVDR4565FZ | HVDR4565FZW | HVDR4565FZE | HVDR4565FZB | 45*65 | 4 | 6 | 110-120pcs | 52M |
| HVDR6565FZ | HVDR6565FZW | HVDR6565FZE | HVDR6565FZB | 65*65 | 4 | 6 | 180-200pcs | 44M |
| HVDR7265FZ | HVDR7265FZW | HVDR7265FZE | HVDR7265FZB | 72*65 | 4 | 6 | 180-230pcs | 42M |
| HVDR2575FZ | HVDR2575FZW | HVDR2575FZE | HVDR2575FZB | 25*75 | 4 | 6 | 160-190pcs | / |
| HVDR3575FZ | HVDR3575FZW | HVDR3575FZE | HVDR3575FZB | 35*75 | 4 | 6 | 170-200pcs | / |
| HVDR5075FZ | HVDR5075FZW | HVDR5075FZE | HVDR5075FZB | 50*75 | 4 | 6 | 180-210pcs | 42 |
| HVDR7575FZ | HVDR7575FZW | HVDR7575FZE | HVDR7575FZB | 75*75 | 4 | 6 | 200-240pcs | 40M |
| HVDR10075FZ | HVDR10075FZW | HVDR10075FZE | HVDR10075FZB | 100*75 | 4 | 6 | 250-290pcs | 24M |
| HVDR2580FZ | HVDR2580FZW | HVDR2580FZE | HVDR2580FZB | 25*80 | 4 | 6 | 100~120pcs | 72M |
| HVDR3080FZ | HVDR3080FZW | HVDR3080FZE | HVDR3080FZB | 30*80 | 4 | 6 | 110~125pcs | 56M |
| HVDR3580FZ | HVDR3580FZW | HVDR3580FZE | HVDR3580FZB | 35*80 | 4 | 6 | 110~130pcs | 56M |
| HVDR4080FZ | HVDR4080FZW | HVDR4080FZE | HVDR4080FZB | 40*80 | 4 | 6 | 140~160pcs | 48M |
| HVDR4580FZ | HVDR4580FZW | HVDR4580FZE | HVDR4580FZB | 45*80 | 4 | 6 | 140~160pcs | 40M |
| HVDR5080FZ | HVDR5080FZW | HVDR5080FZE | HVDR5080FZB | 5080 | 4 | 6 | 160~180pcs | 40M |
| HVDR5580FZ | HVDR5580FZW | HVDR5580FZE | HVDR5580FZB | 55*80 | 4 | 6 | 160~180pcs | 32M |
| HVDR6080FZ | HVDR6080FZW | HVDR6080FZE | HVDR6080FZB | 60*80 | 4 | 6 | 180~210pcs | 32M |
| HVDR8080FZ | HVDR8080FZW | HVDR8080FZE | HVDR8080FZB | 80*80 | 4 | 6 | 240~290pcs | 24M |
| HVDR10080FZ | HVDR10080FZW | HVDR10080FZE | HVDR10080FZB | 100*80 | 4 | 6 | 260~350pcs | 24M |
| HVDR12080FZ | HVDR12080FZW | HVDR12080FZE | HVDR12080FZB | 120*80 | 4 | 6 | 280~380pcs | 16M |
| HVDR14080FZ | HVDR14080FZW | HVDR14080FZE | HVDR14080FZB | 140*80 | 4 | 6 | 350~450pcs | 16M |
| HVDR16080FZ | HVDR16080FZW | HVDR16080FZE | HVDR16080FZB | 160*80 | 4 | 6 | 50*-550pcs | / |
| HVDR25100FZ | HVDR25100FZW | HVDR25100FZE | HVDR25100FZB | 25*100 | 4 | 6 | 110~160pcs | 60M |
| HVDR33100FZ | HVDR33100FZW | HVDR33100FZE | HVDR33100FZB | 33*100 | 4 | 6 | 130~165pcs | 44M |
| HVDR40100FZ | HVDR40100FZW | HVDR40100FZE | HVDR40100FZB | 40*100 | 4 | 6 | 130~175pcs | 40M |
| HVDR50100FZ | HVDR50100FZW | HVDR50100FZE | HVDR50100FZB | 50*100 | 4 | 6 | 220~250pcs | 40M |
| HVDR60100FZ | HVDR60100FZW | HVDR60100FZE | HVDR60100FZB | 60*100 | 4 | 6 | 240~290pcs | 32M |
| HVDR70100FZ | HVDR70100FZW | HVDR70100FZE | HVDR70100FZB | 70*100 | 4 | 6 | 250-310pcs | 24M |
| HVDR75100FZ | HVDR75100FZW | HVDR75100FZE | HVDR75100FZB | 75*100 | 4 | 6 | 260~350pcs | 24M |
| HVDR80100FZ | HVDR80100FZW | HVDR80100FZE | HVDR80100FZB | 80*100 | 4 | 6 | 260~350pcs | 24M |
| HVDR100100FZ | HVDR100100FZW | HVDR100100FZE | HVDR100100FZB | 100*100 | 4 | 6 | 300~400pcs | 24M |
| HVDR120100FZ | HVDR120100FZW | HVDR120100FZE | HVDR120100FZB | 120*100 | 4 | 6 | 350~450pcs | 16M |
| HVDR150100FZ | HVDR150100FZW | HVDR150100FZE | HVDR150100FZB | 150*100 | 4 | 6 | 400~650pcs | 16M |
| HVDR160100FZ | HVDR160100FZW | HVDR160100FZE | HVDR160100FZB | 160*100 | 4 | 6 | 500-750pcs | / |
| HVDR100130FZ | HVDR100130FZW | HVDR100130FZE | HVDR100130FZB | 100*130 | 4 | 6 | 350-450pcs | / |
| *HVDR200100FZ | HVDR200100FZW | HVDR200100FZE | HVDR200100FZB | 200*100 | 4 | 6 | 600~900pcs | 12M |
| *HVDR200150FZ | HVDR200150FZW | HVDR200150FZE | HVDR200150FZB | 200*150 | 4 | 6 | 900~1200pcs | 1 |
